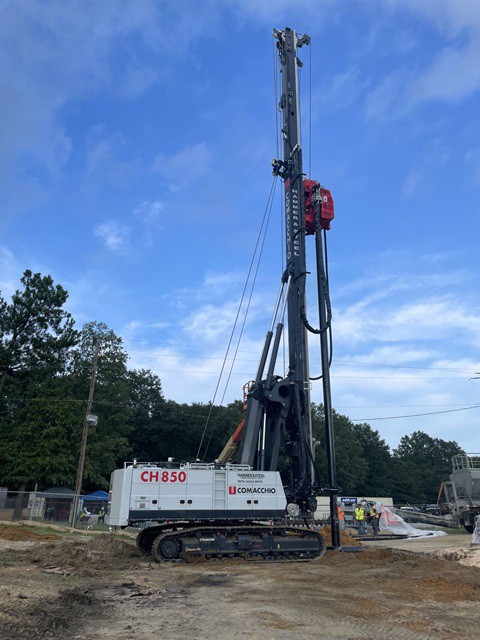

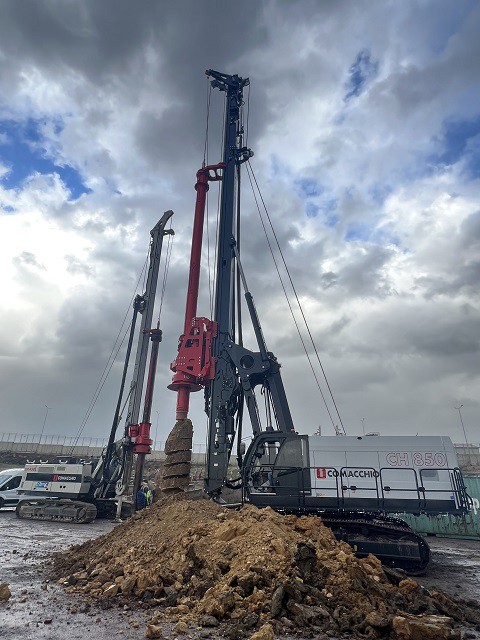

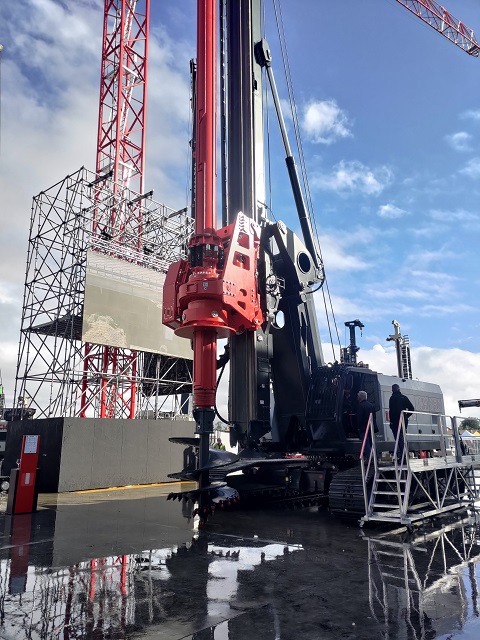

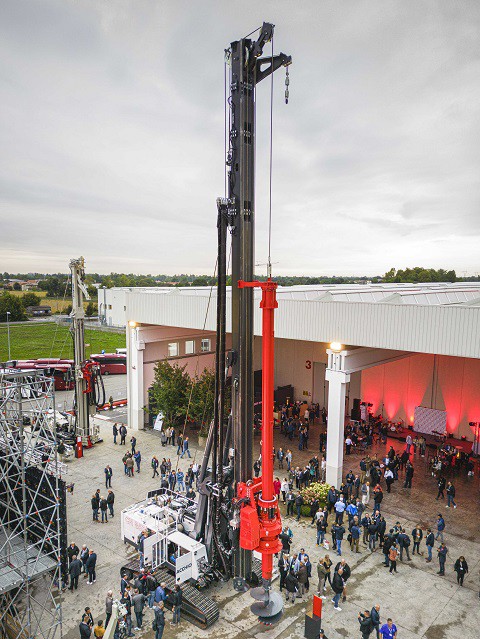

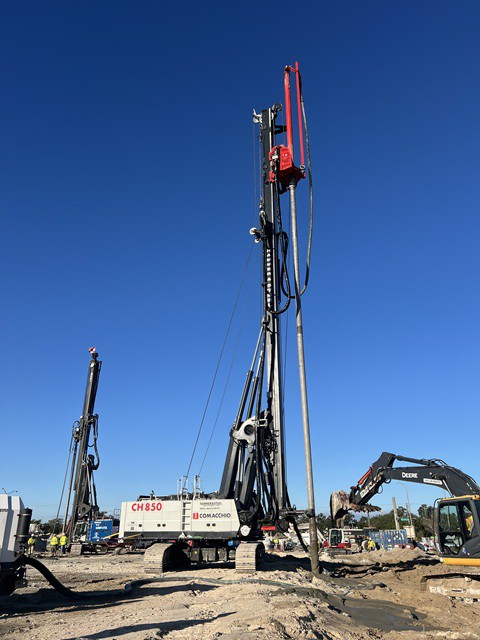

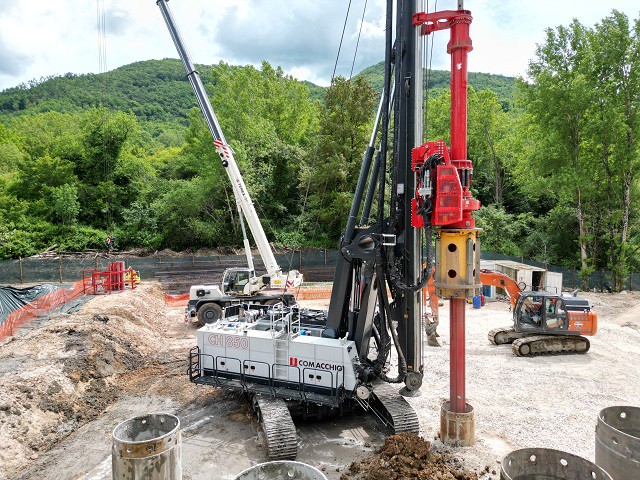

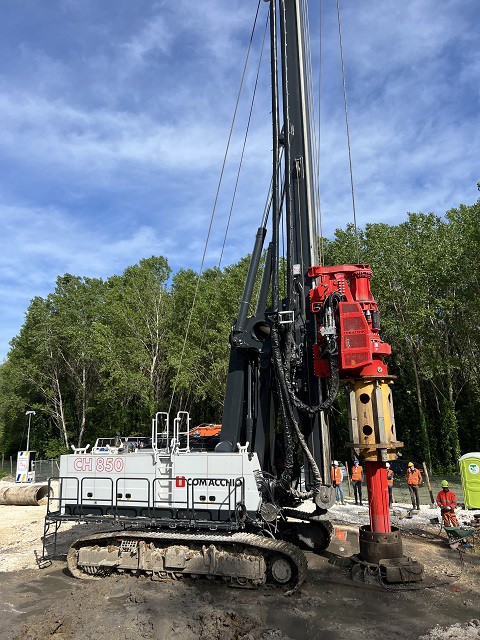

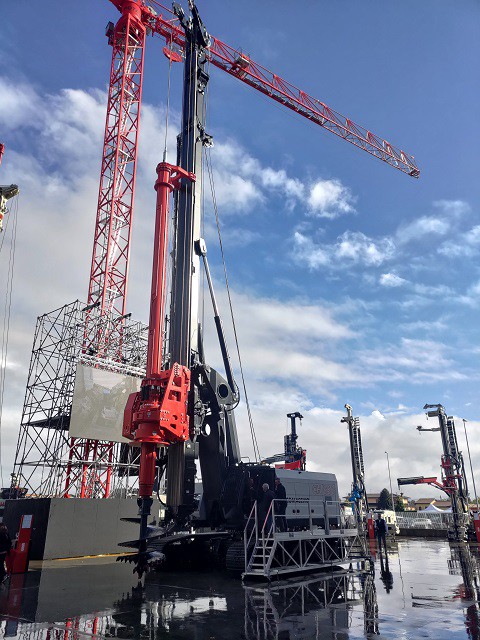

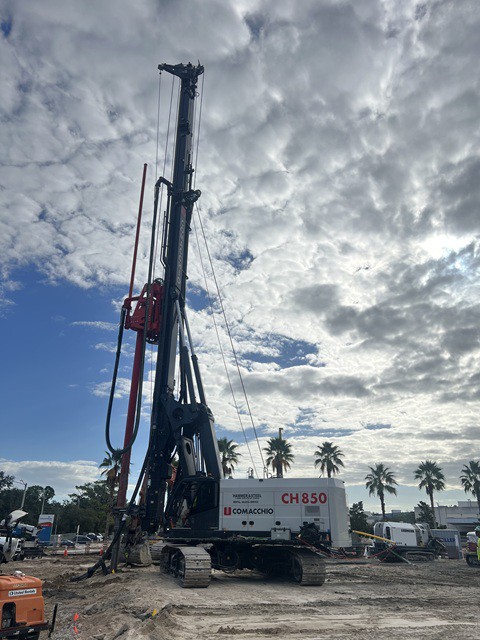

The CH 850 is a multipurpose large diameter piling machine with an operating weight of approximately 90 tonnes. Delivering up to 360 kNm torque, the machine stands out for its exceptional torque/weight ratio. The CH 850 is equipped with an extendable carriage with removable side frames, which allow for reduced transport dimensions and weight. The latest generation engine, combined with an innovative hydraulic system, makes the CH 850 a highly efficient machine, with consequent advantages in terms of consumption and emissions. The CH 850 is designed to cover a wide range of operations including Kelly piles, continuous flight auger piles (CFA piles), displacement piles and soil mixing. The machine is currently available in the WPD (winch pull down) configuration and can be equipped with kelly bars up to 445 mm, reaching a maximum depth of 90 m. The CH 850 can be converted for CFA drilling, using augers up to 1200 mm in diameter and reaching a max. depth of 28 m.
| Diesel engine | Volvo D13 (EU Stage IIIA/Stage V - US EPA Tier 3/Tier 4f) | |
| Power rating | 345 - 405 kW (463 - 543 HP) / 1700 rpm | |
| Max nominal torque | 360 kNm | 265,520 lbf*ft |
| Main Winch | 300 kN | 67,440 lbs |
| Operating weight CPD | - | - |
| Operating weight WPD | 89000 kg | 196,200 lbs |
| WPD (Winch Pull Down) | ||
| Max pull up force | 420 kN | 94,420 lbs |
| CPD (Cylinder Pull Down) | ||
| Max pull up force | - | - |
| CFA | ||
| Max pile diameter | 1200 mm | 3’ 11” |
| Max pile depth | 19.7 + 8 = 27.7 m | 64’ 7” + 26‘ 3" = 90’ 10” |
