MC 8 D

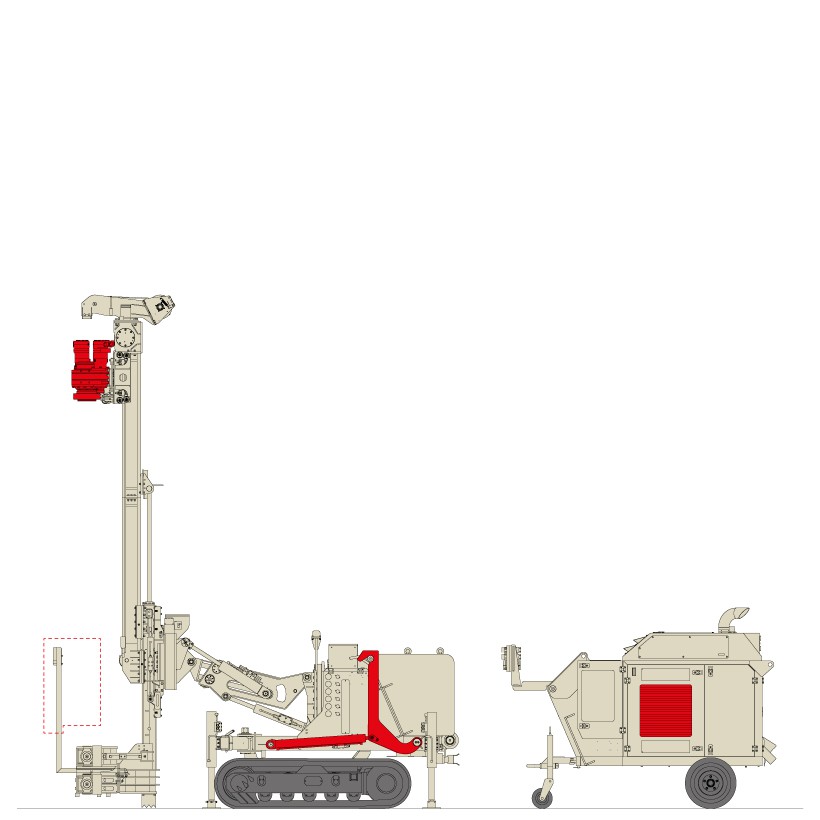

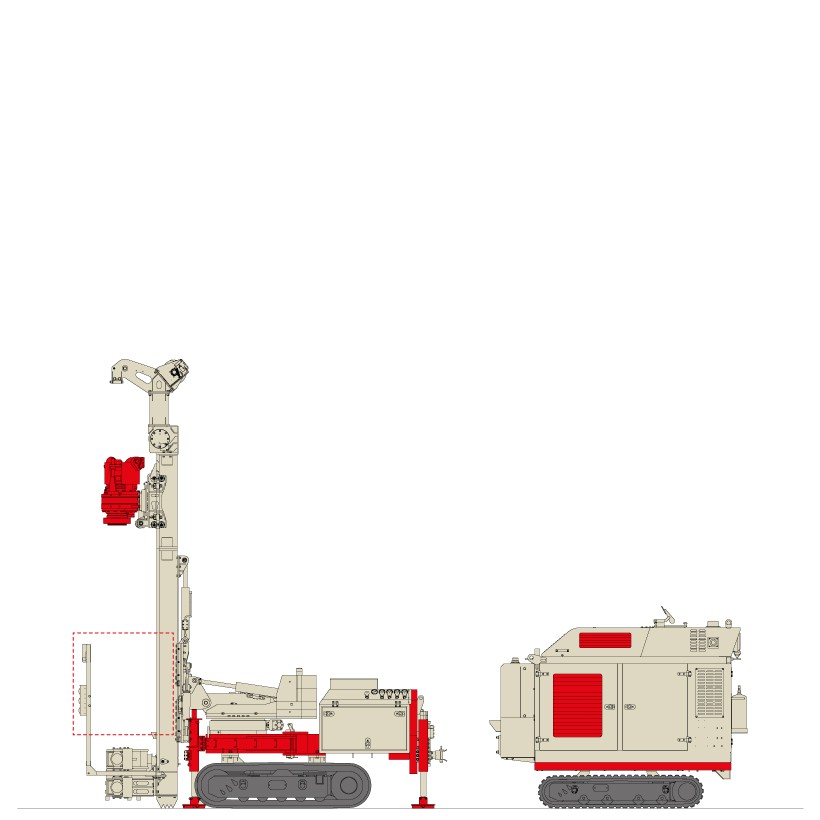

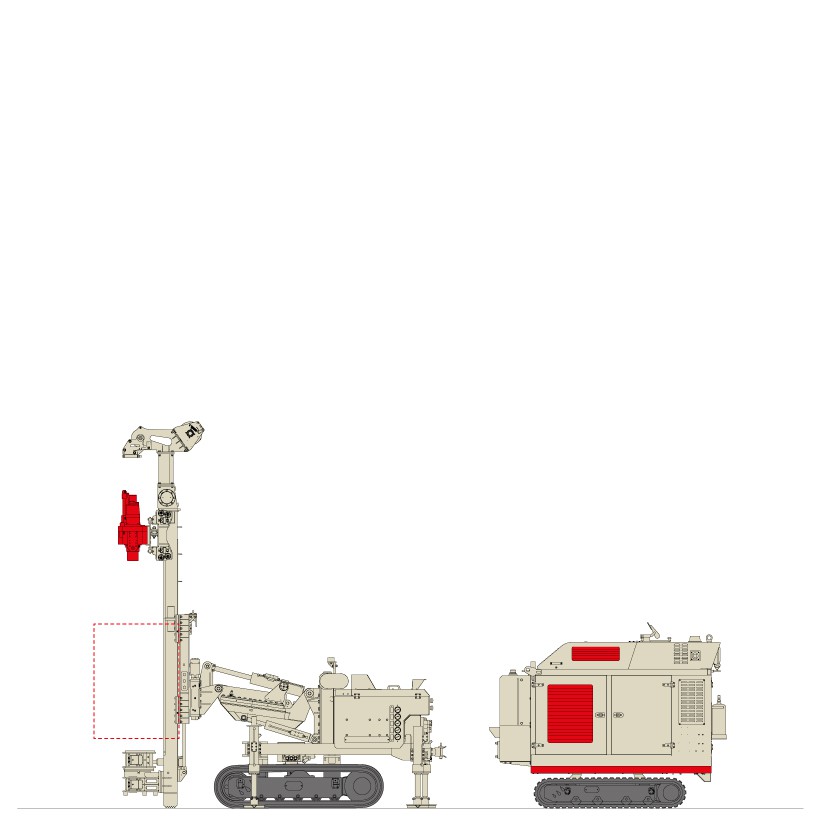

Roll-off system

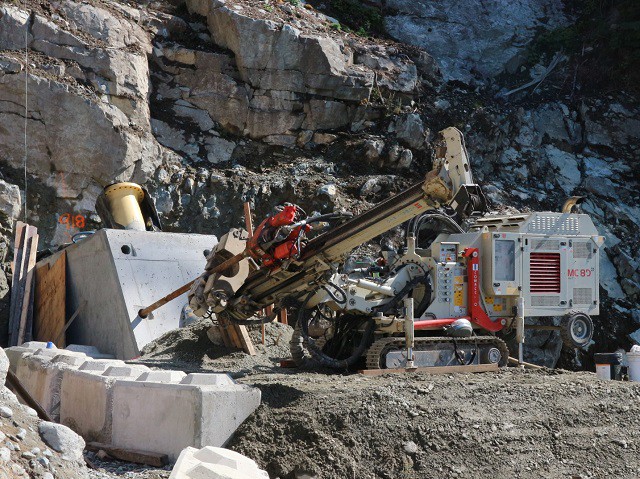

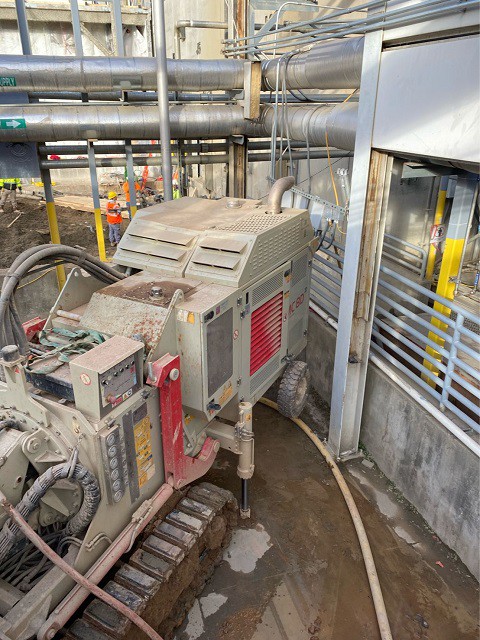

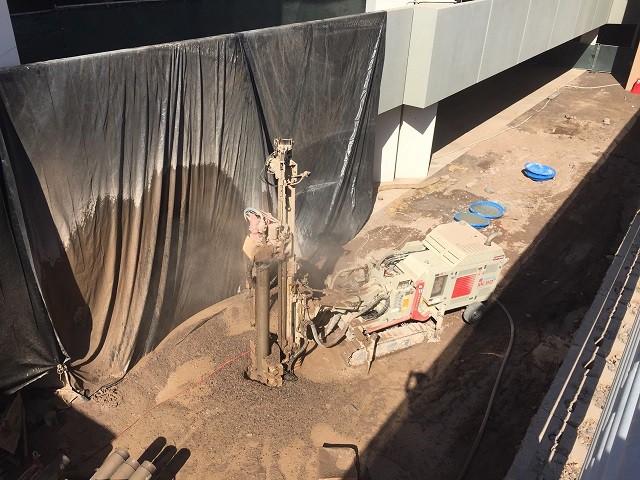

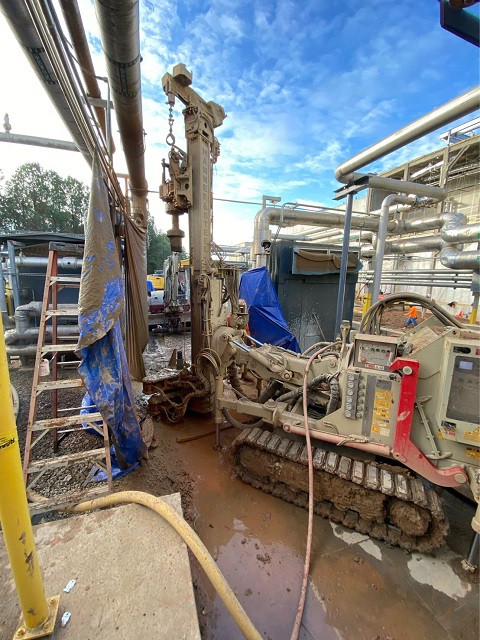

The MC 8D is a versatile and powerful hydraulic drilling rig, designed for civil engineering works such as micropiles, anchors and ground improvement in general through the use of all rotary and/or rotary- percussive drilling systems. Thanks to the innovative roll-off system, the MC 8D can be used with either onboard or separate power pack (electric or diesel). The telescopic mast allows the use of drilling rods of different length without the application of mast extensions. The standard features of the MC 8D include the innovative Comacchio radio control system, which electronically manages all functions, including the adjustment of the telescopic mast and the power pack roll-off system. Like all Comacchio rigs, the MC 8D can be customized according to specific needs.

TECH DATA

Engine Power 75 - 97 kW (101 - 130 HP)
Max Width 1.200 - 1.600 mm 3' 11'' - 5' 3''
Weight  9.1 - 9.6 ton
Mast Feed 950 - 4.000 mm 3' 1'' - 13' 2''
Feed Force 5.400 daN 12,140 lbs
Retract Force 5.400 daN 12,140 lbs
Rotary Torque 850 - 2.325 daNm 6,269 - 17,148  lb*ft
Rotary Speed Range 135 - 380 rpm
Clamp Range 45 - 325 mm 1'' 3/4 - 1' 1''
