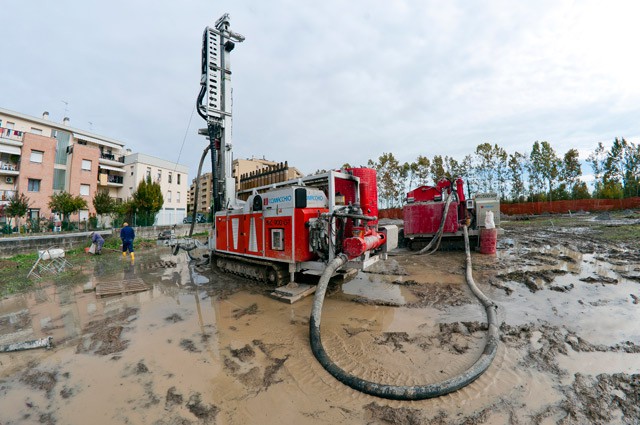

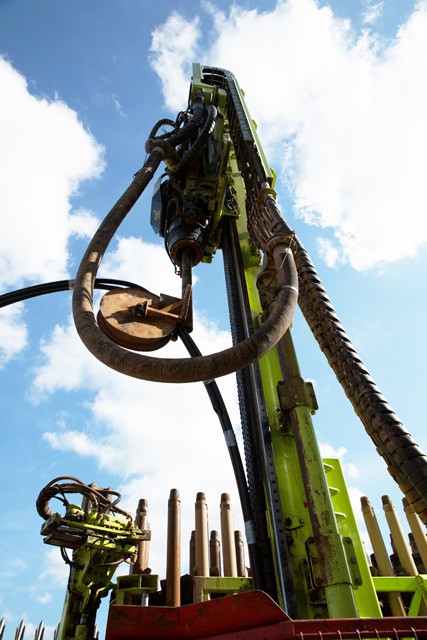

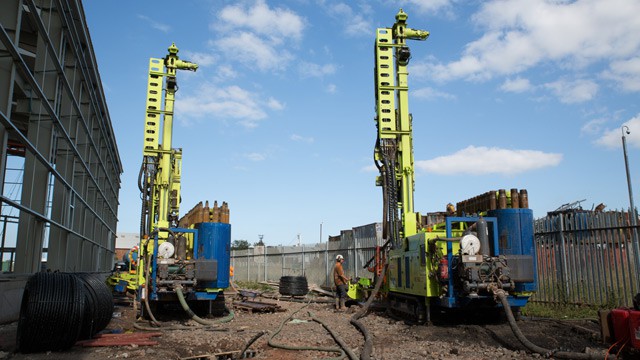

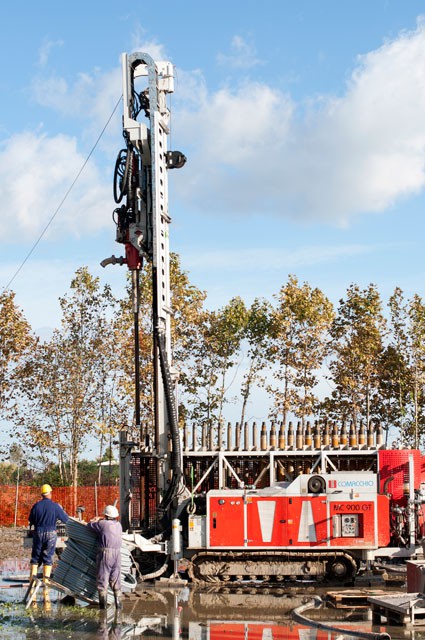

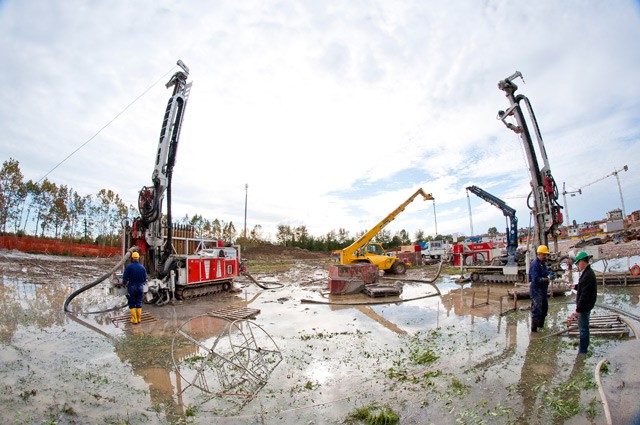

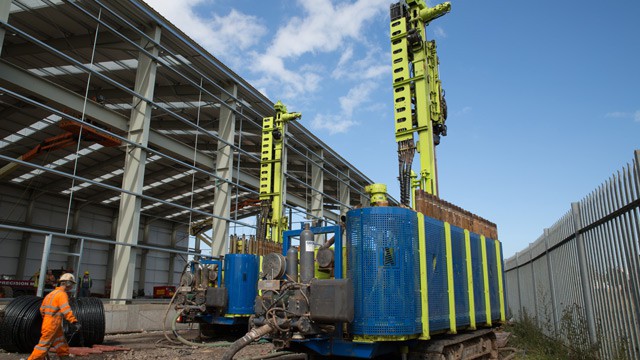

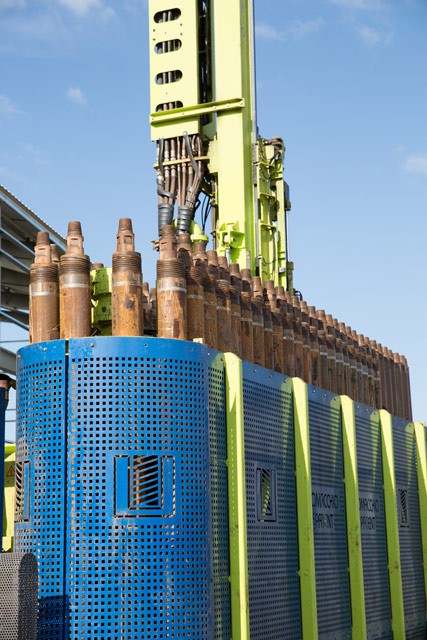

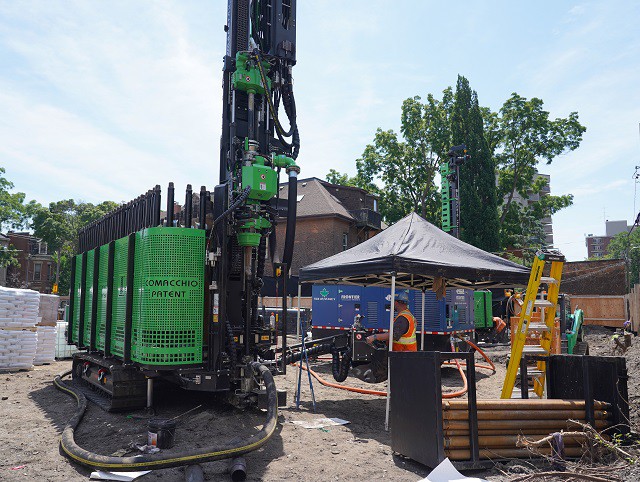

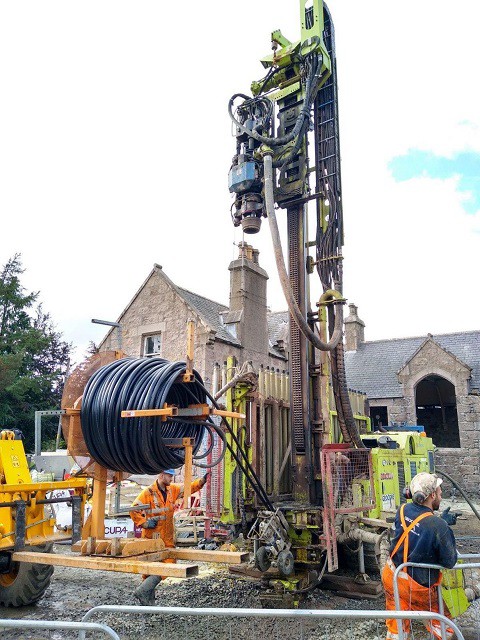

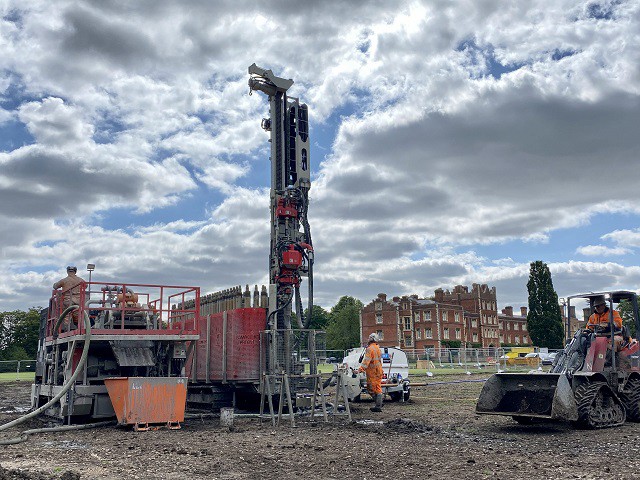

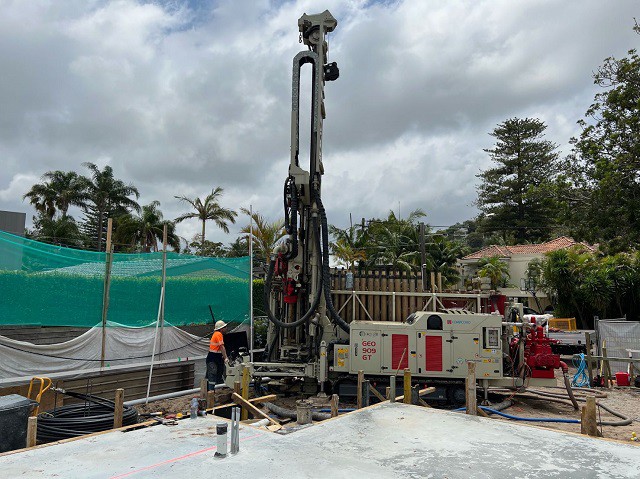

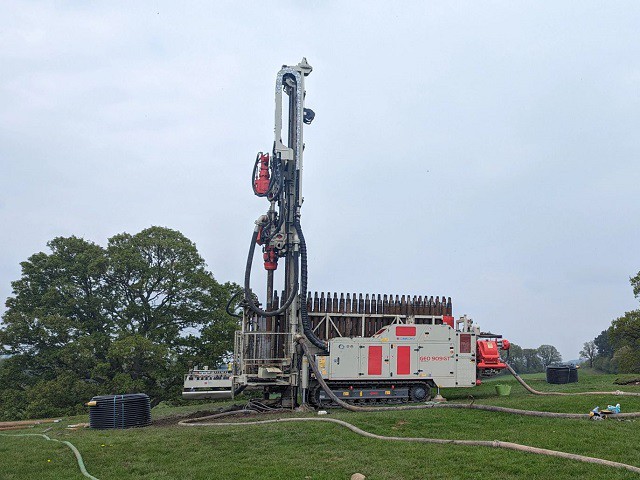

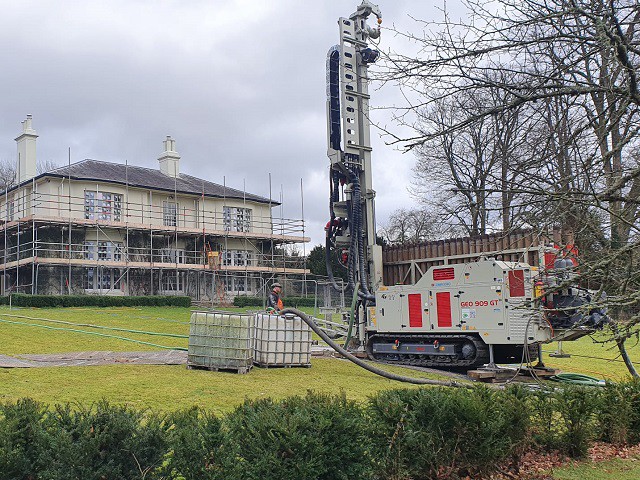

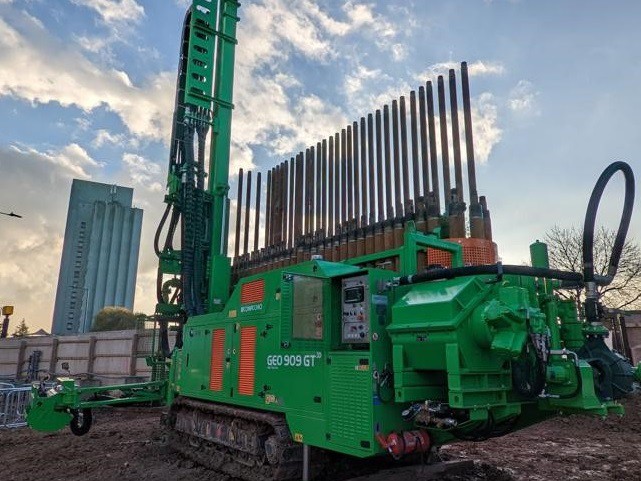

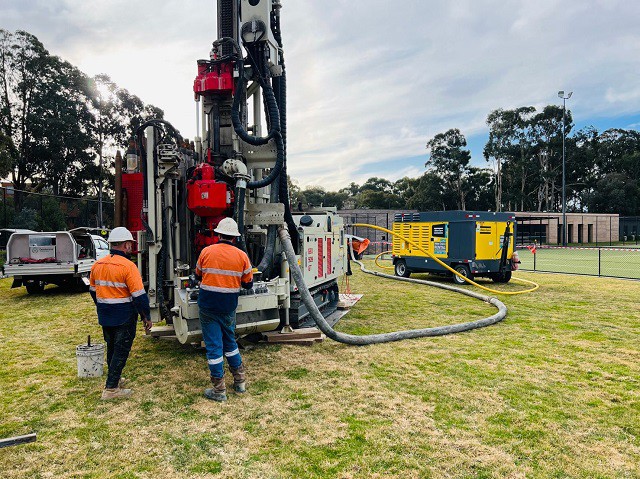

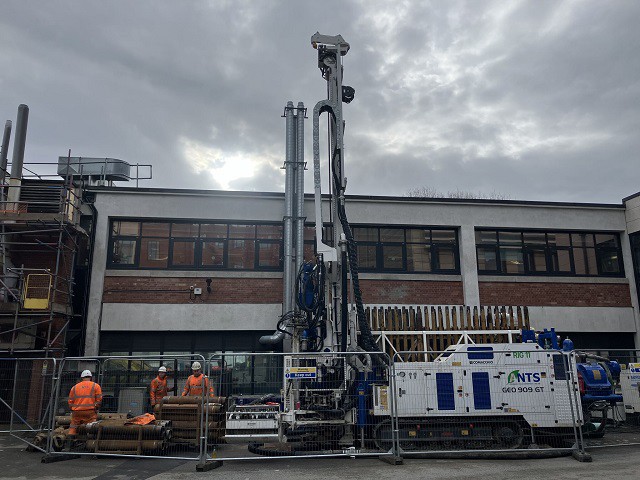

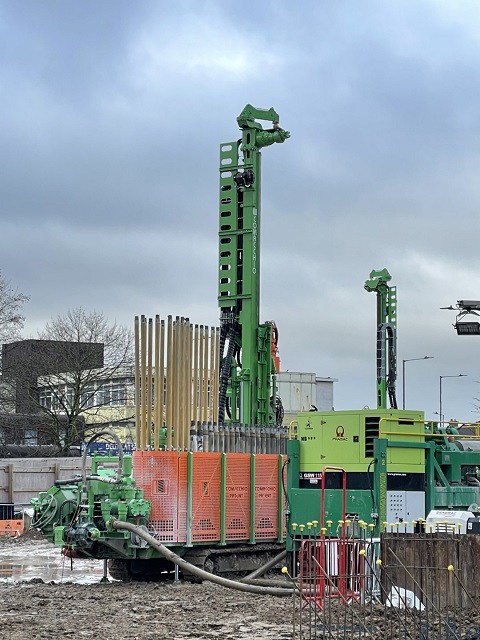

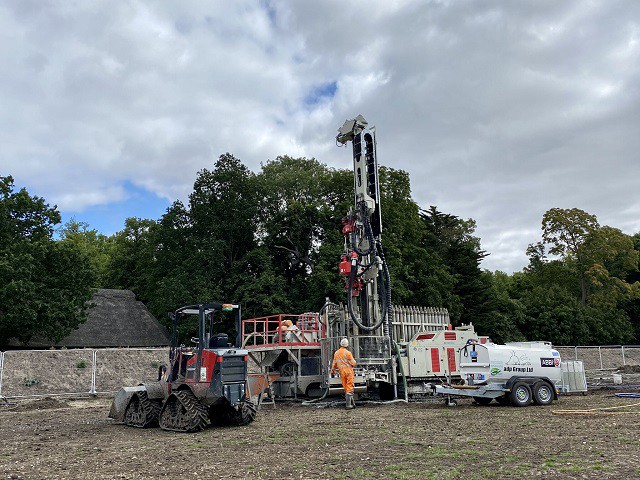

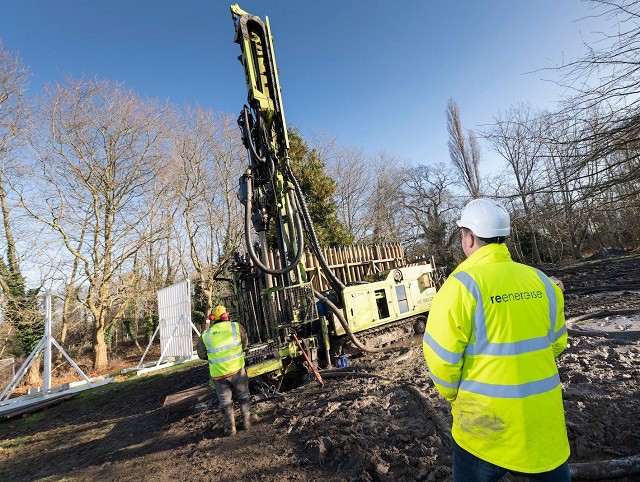

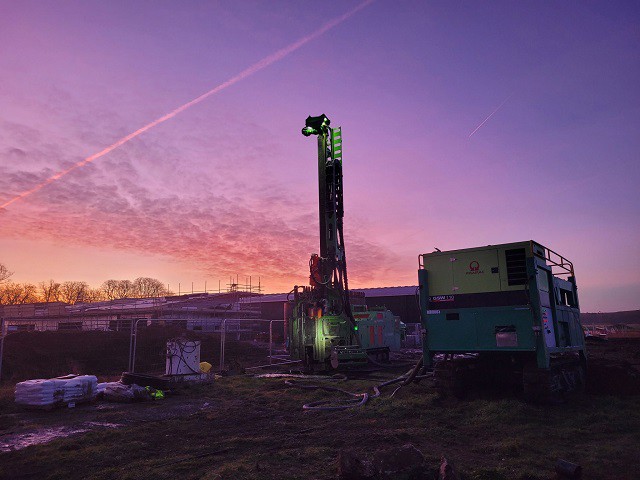

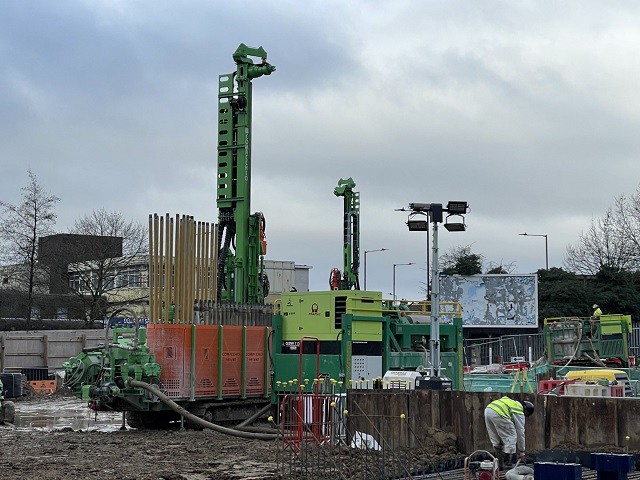

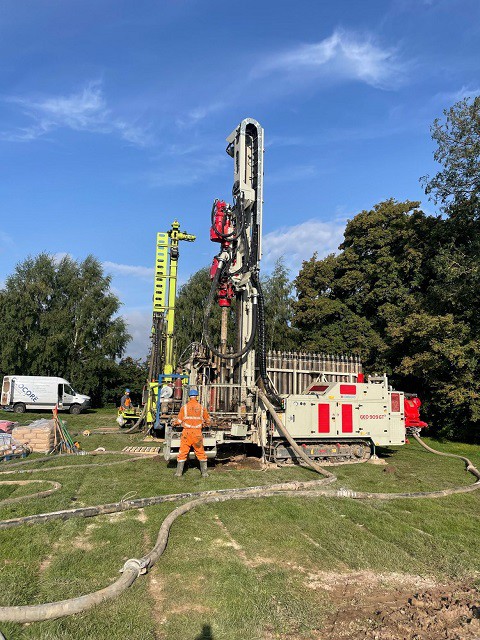

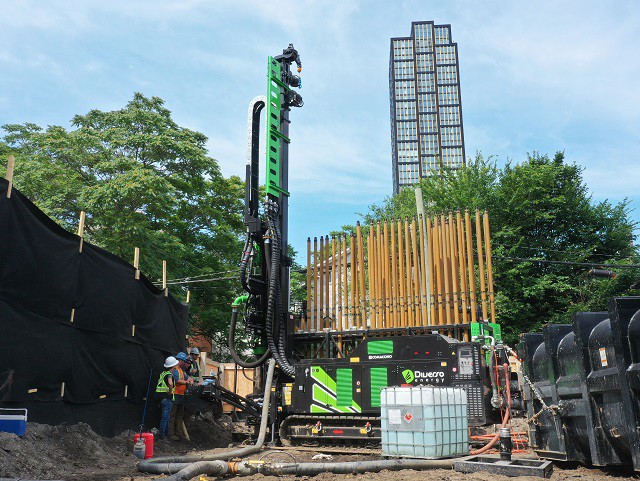

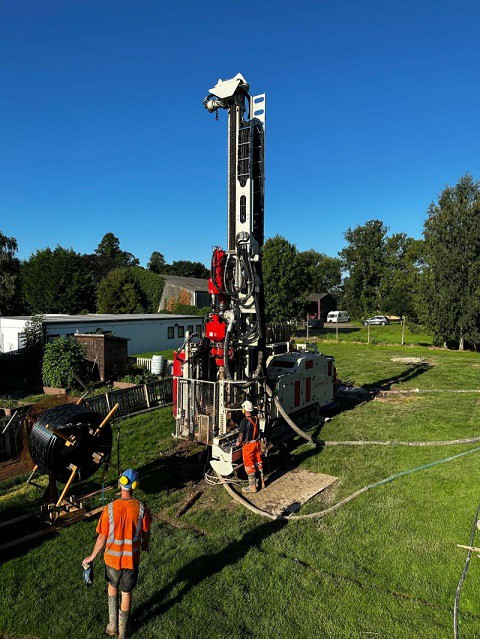

The GEO 909 GT is the flagship of the Comacchio range of geothermal drilling rigs. Its concept has taken jobsite automation and safety to a new level, totally eliminating the manual handling of the drilling equipment required for the installation of geothermal heat loops. The double head system, designed for simultaneous drilling and casing, not only stabilizes the borehole, but allows to drill safer and faster, improving spoils handling (thus reducing environmental impacts). It also helps preserve groundwater resources, preventing aquifer cross-contamination.
| Engine Power | 147 - 180 kW (197 - 241 HP) | |
| Max Width | 2.400 mm | 7.9 ft |
| Weight | 20.000 - 23.000 kg | 44,000 - 50,700 lbs |
| Mast Feed | 4.740 mm | 15.5 ft |
| Feed Force | 14.500 - 19.500 daN | 32,600 - 43,840 lbs |
| Retract Force | 14.500 - 19.500 daN | 32,600 - 43,840 lbs |
| Rotary Torque max. | 1.700 daNm 3.600 daNm |
12,540 lb*ft 26,552 lb*ft |
| Rotary Speed max. | 78 - 220 rpm | |
| Clamp Range | 85 - 200 mm | 3.3 - 7.9 in |
