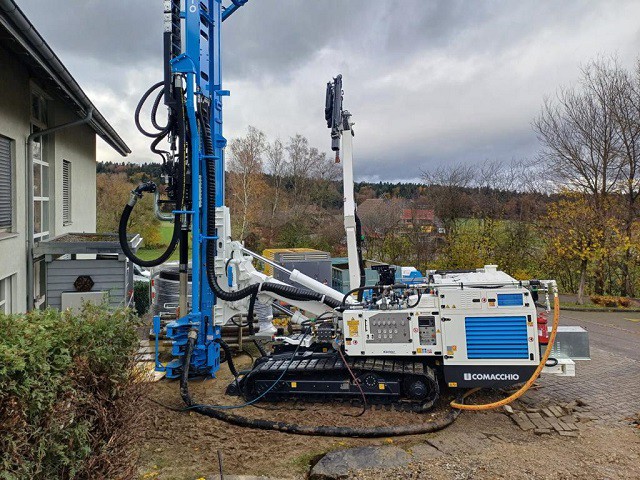

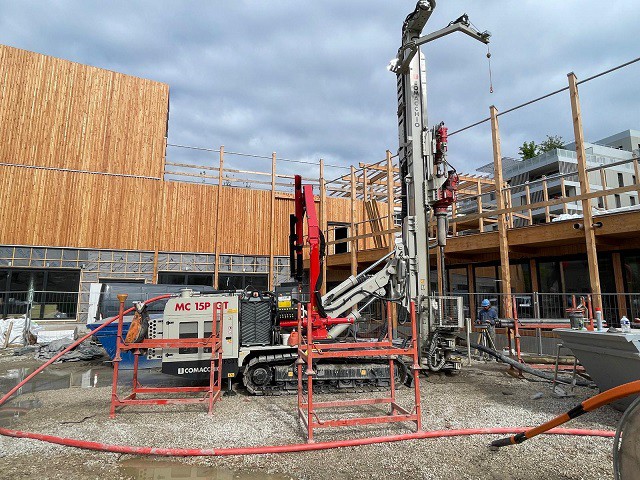

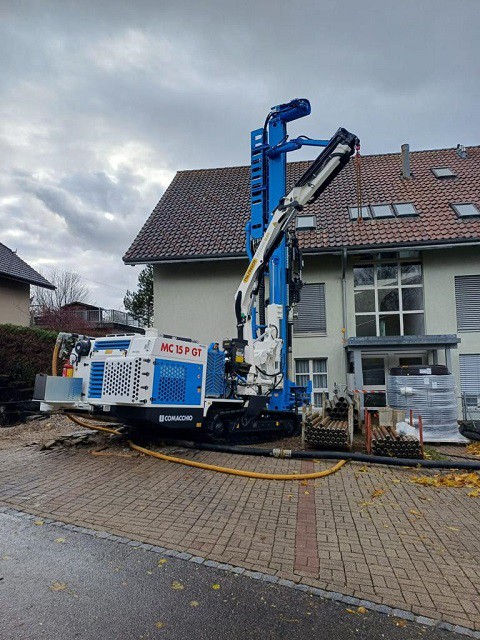

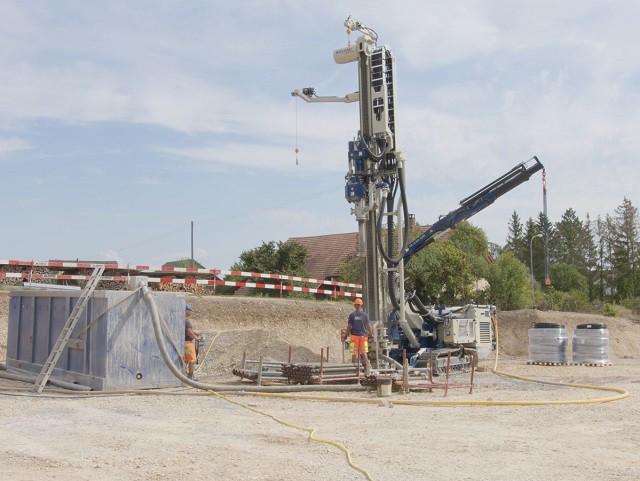

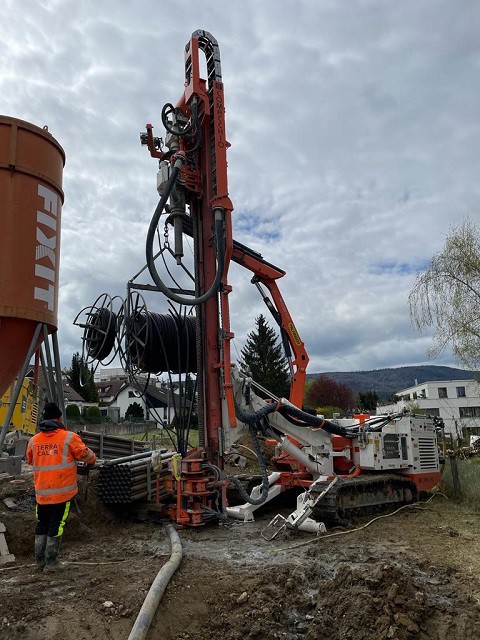

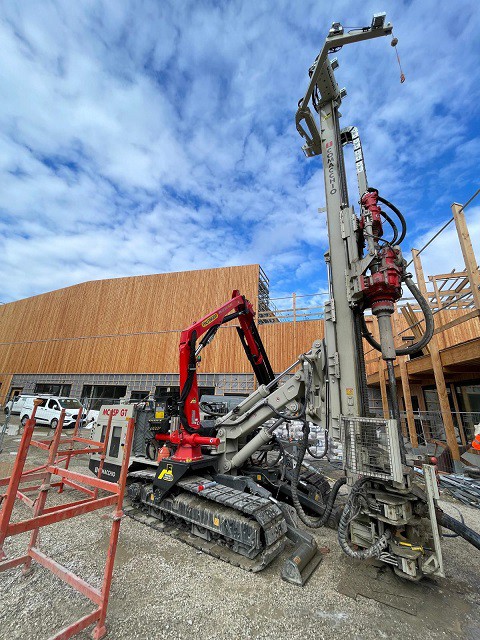

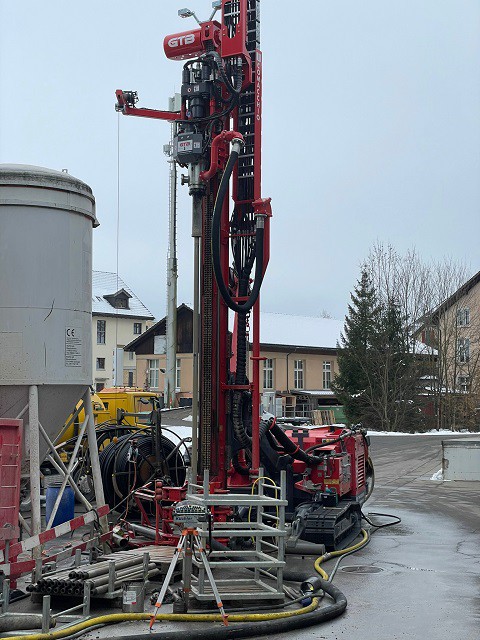

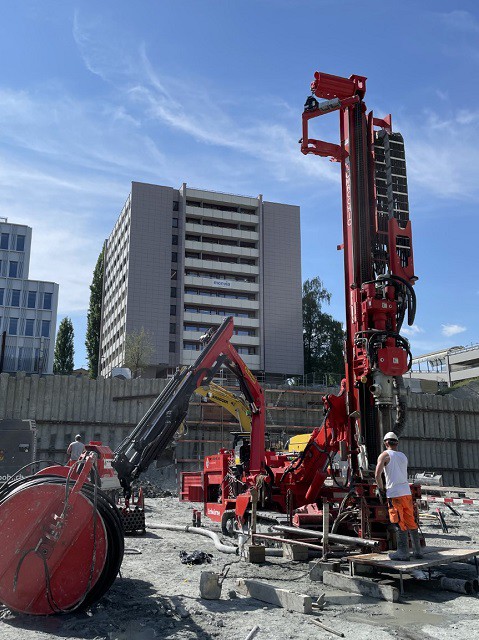

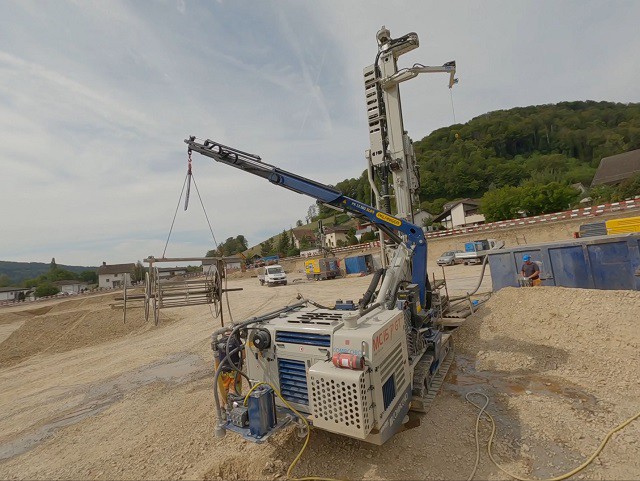

The new MC 15P GT is a dedicated machine for the shallow geothermal sector. The rig features an articulation system developed starting from micropiling machines, which facilitates precise positioning on the hole. Compact and powerful, the MC 15P GT is equipped with a 205 kW engine and a Comacchio double head system that offers 3200 daNm of torque on the lower head and 1600 daNm on the upper one. The powerful engine allows for the installation of a wide selection of pumps and accessories, including the hydraulic crane mounted on the machine, which greatly facilitates the installation of geothermal heat exchangers. With the MC 15P GT Comacchio takes a further step forward in the process of optimization of geothermal drilling processes, aimed at ensuring maximum operational efficiency and cost-effectiveness.
Engine Power | 168 kW (225 HP) | |
Max Width | 2.540 mm | 8' 4'' |
Weight | 20 - 22 ton | |
Mast Feed | 5.030 mm | 16' 6'' |
Feed Force | 14.500 - 19.500 daN | 32,597 - 43,838 lbs |
Retract Force | 14,500 - 19.500 daN | 32,597 - 43,838 lbs |
Rotary Torque | 300 - 1.350 daNm 2.160 - 3.320 daNm |
2,213 - 9,957 lb*ft 15,931 - 24,487 lb*ft |
Rotary Speed Range |
700 - 220 rpm / 40 - 60 rpm |
|
Clamp Range | 45 -260 mm | 1'' 3/4 - 10'' 1/4 |
