Variety of movements

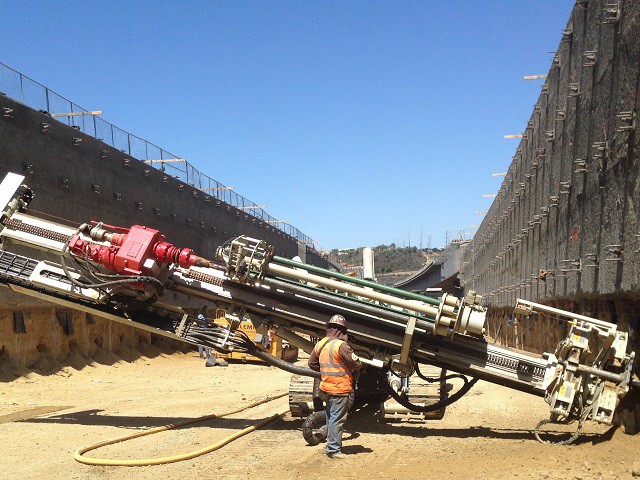

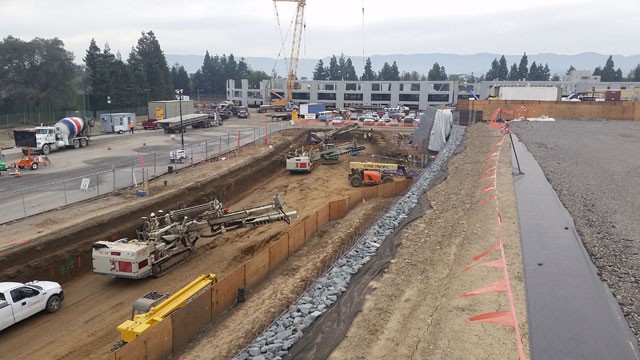

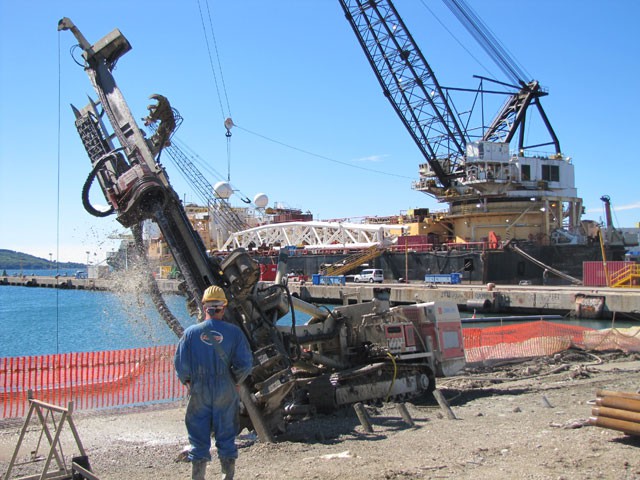

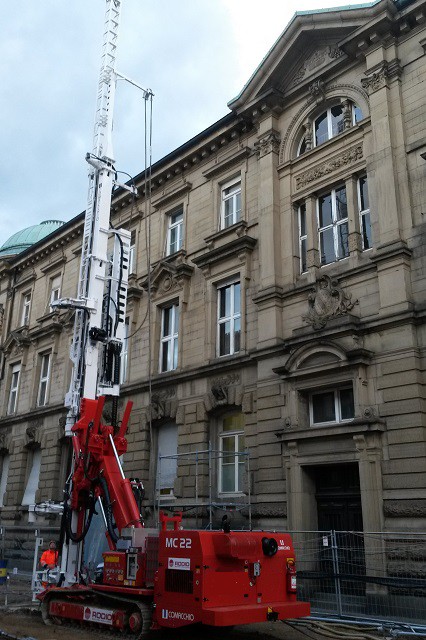

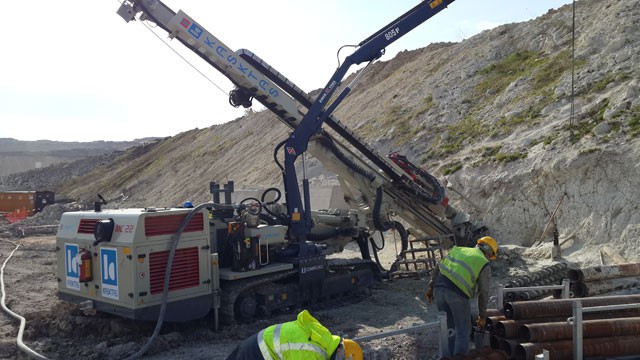

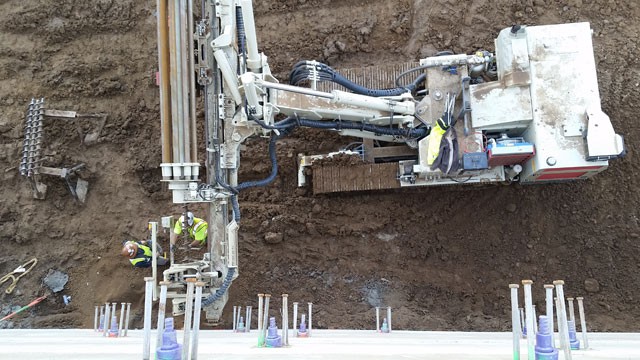

The MC 22 is the iconic rig of the Comacchio fleet. Conceived in 1997, the MC 22 was the first drilling rig equipped with the innovative Comacchio mast articulation system. The variety of movements and inclinations due to this system allows for the use of the MC 22 for various kinds of ground engineering works (micropiles, anchors, jet grouting and consolidations in general) even in confined spaces.
Available with a wide selection of rotary heads, hydraulic hammers, double head systems, water and mud pumps, winches and rod carousels, the MC 22 is suitable for any type of rotary and rotary-percussive drilling and can be equipped with hydraulic proportional servo-assisted controls or radio control for tramming, drilling, machine set-up and carousel functions.
Like all Comacchio machines, the MC 22 can be customized according to specific needs.
| Engine Power | 180 - 205 kW (240 - 278 HP) | |
| Max Width | 2.500 mm | 8.2 ft |
| Weight | 22.000 - 24.000 kg | 48,500 - 52,900 lbs |
| Mast Feed | 4.450 - 10.200 mm | 14.6 - 33.5 ft |
| Feed Force | 9.500 daN | 21,360 lbs |
| Retract Force | 9.500 daN | 21,360 lbs |
| Rotary Torque | 1.400 - 5.000 daNm | 10,325 - 36,880 lb*ft |
| Rotary Speed Range | 100 - 260 rpm | |
| Clamp Range | 45 - 530 mm | 1.8 - 20.9 in |
