MC 6S

Compact size and high performance

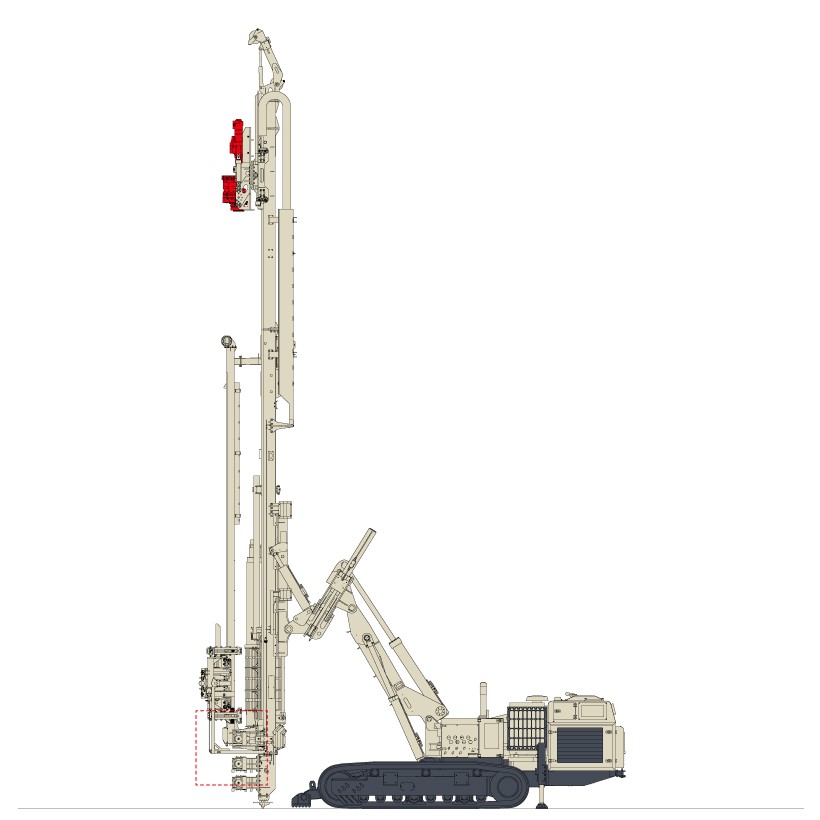

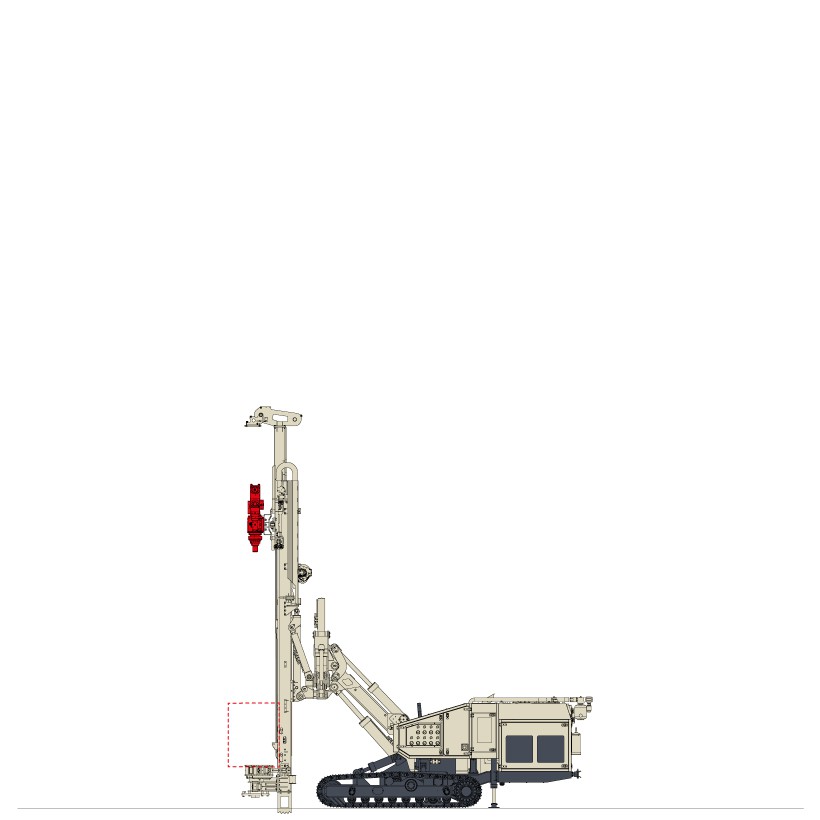

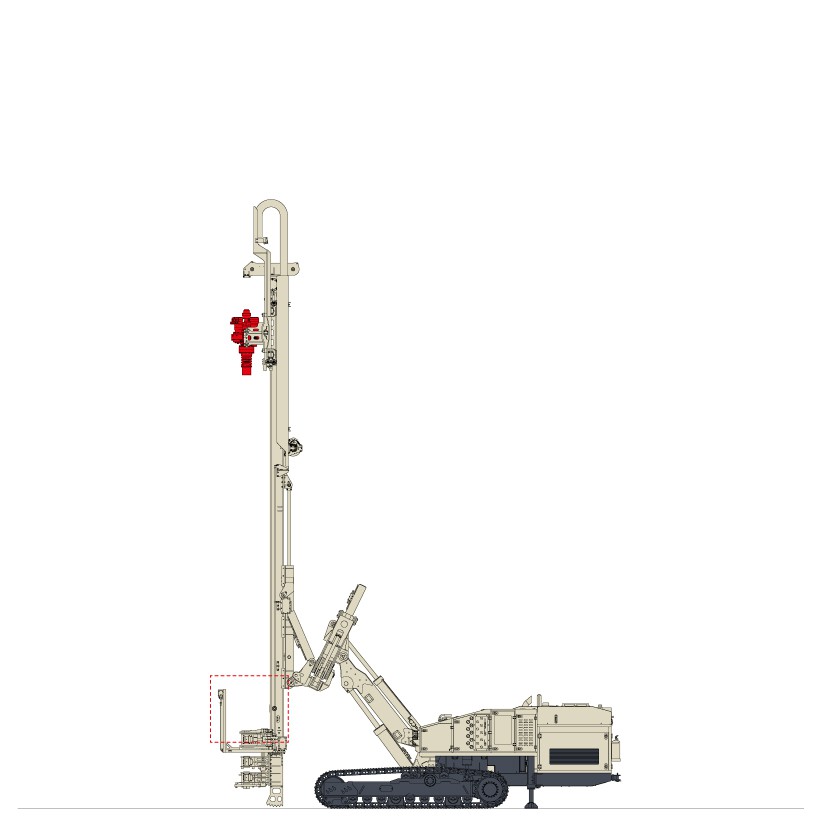

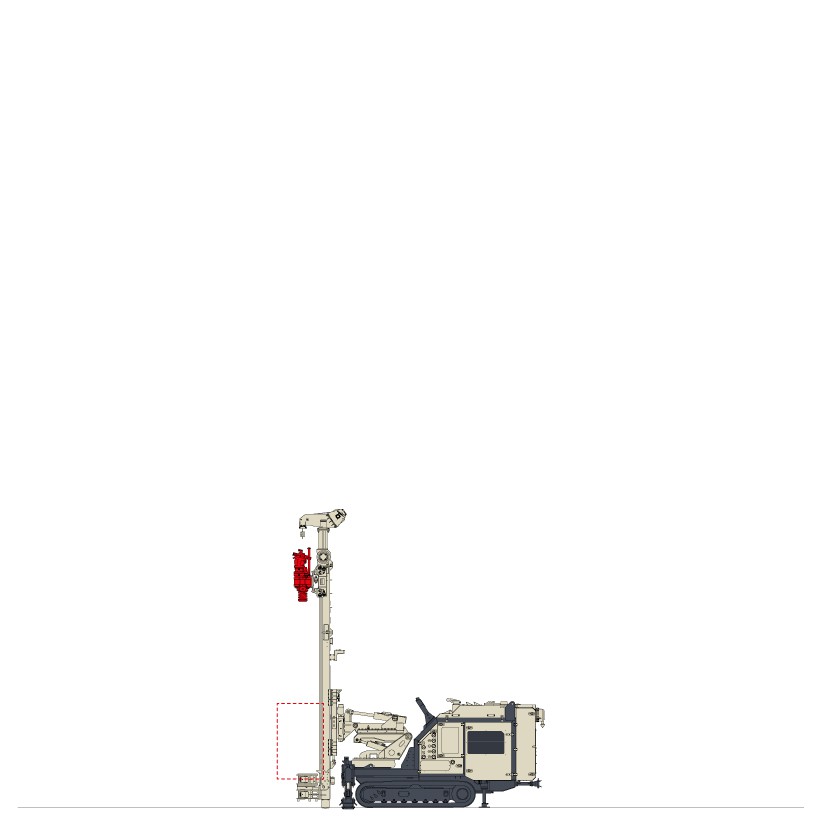

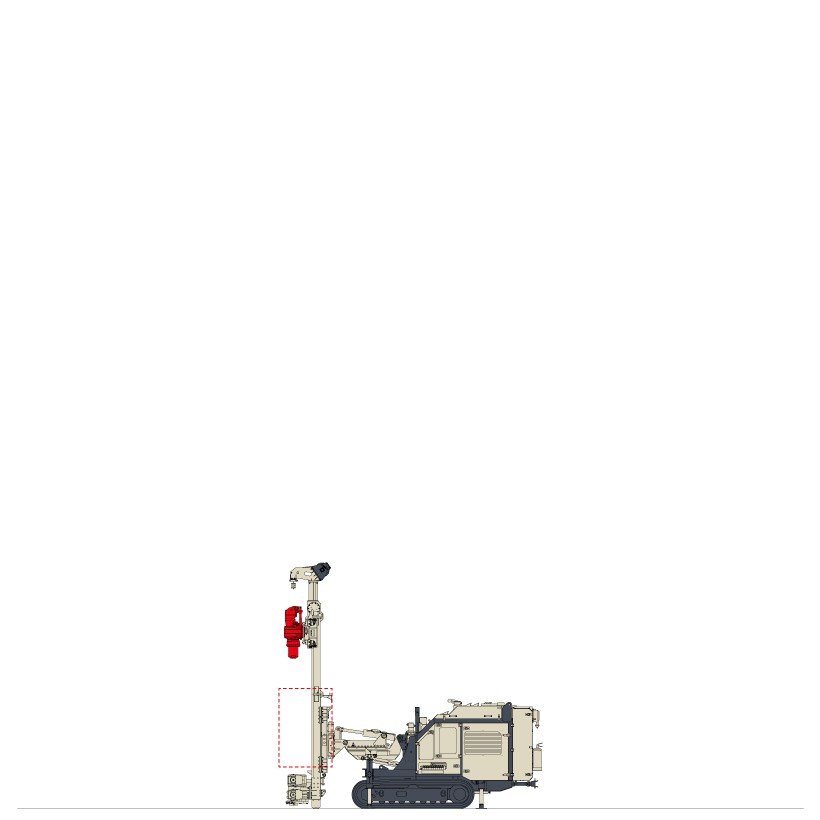

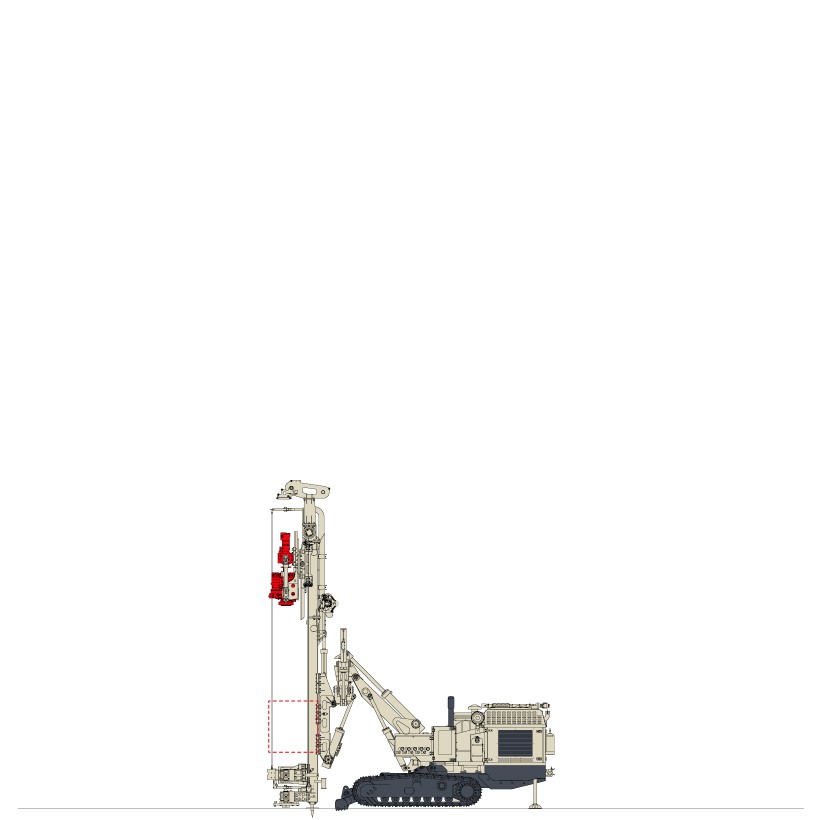

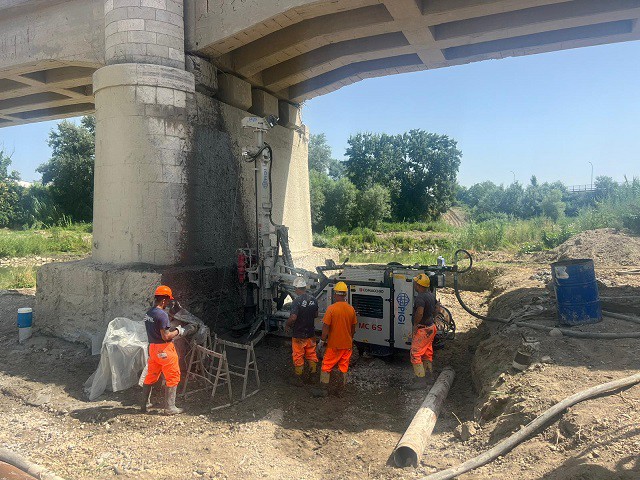

The MC 6 is an extremely compact and lightweight multipurpose drilling machine designed for easy mobilization, operation in tight spaces and limited access jobsites (for example inside buildings, shafts, cellars and small tunnels). The MC 6S features an advanced mast articulation system that allows the mast to be positioned or inclined to meet project requirements without any fuss or re-pinning. The fully articulated double-slew mast kinematics allows the MC 6S to cover the widest working area even in confined spaces. The MC 6S can be used for various applications: micropiles, anchors, self-drilling bars and earth stabilisation in general, ensuring maximum ease and safety of use in limited space conditions. The MC 6S is equipped with the Comacchio radio control system which allows you to control all its functions remotely.

TECH DATA

Engine Power 93 - 100 kW (125 - 134 HP)
Max Width 1.100 - 1.600 mm 3.6 - 5.2 ft
Weight 7.500 - 7.600 kg 16,535 - 16,755 lbs
Mast Feed 900 - 3.200 mm 3 - 10.5 ft
Feed Force 5.000 daN 11,240 lbs
Retract Force 5.000 daN 11,240 lbs
Rotary Torque max. 850 - 1.350 daNm 6,270 - 9,960 lb*ft
Rotary Speed max. 220 - 380 rpm
Clamp Range 45 - 325 mm 1.8 - 12.8 in
