GEO 602

Flexibility

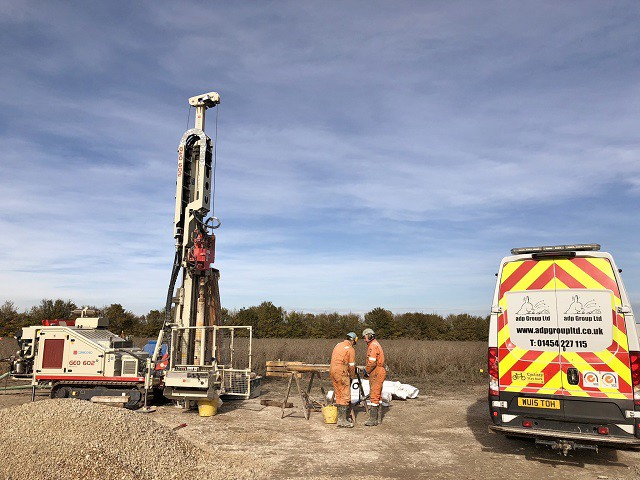

The GEO 602 is a compact and powerful drilling rig suitable for many geotechnical works. This rig incorporates a particularly flexible design and can accommodate many accessories, thus allowing it to cover a large spectrum of activities related to geotechnical investigation, environmental studies and monitoring. These include soil investigations (using either destructive or non-destructive coring techniques), wire-line drilling, in situ penetration tests (SPT), sample collection, and the installation of piezometers, inclinometers and other geotechnical instrumentation. Due to the high mast pull force and rotary head torque output, the GEO 602 is also perfectly suitable for water well drilling, which can be carried out with mud circulation with the use of a down-the-hole hammer. Equipped with advanced modular hydraulic circuits, the GEO 602 can accommodate a wide range of water and mud pumps for the recovery of spoils.

TECH DATA

Engine Power 115 - 119 kW (154 - 160 HP)
Max Width 1.700 - 2.300 mm 5' 7'' - 7' 7''
Weight                                                                                                                                                                           9,5 - 11,5 ton
Mast Feed 4.000 mm 13' 2''
Feed Force 6.500 daN 14,613 lbs
Retract Force 9.000 - 12.000 daN 20,233 - 26,977 lbs
Rotary Torque 835 - 2.000 daNm 6,159 - 14,751 lb*ft
Rotary Speed Range 125 - 980 rpm
Clamp Range 45 - 365 mm 1'' 3/4 - 14'' 3/8
